angular scheduler component

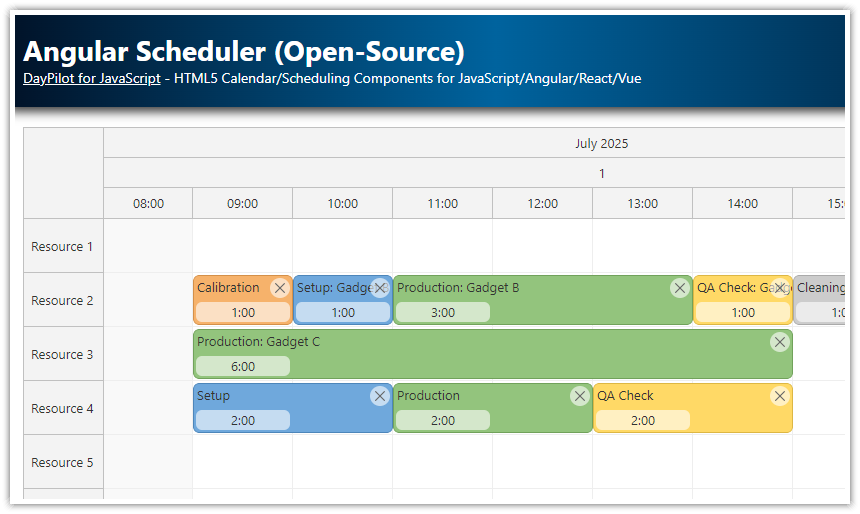

Angular Scheduler is an interactive UI component that displays a timeline for multiple resources. You can use it to create complex scheduling applications with custom business rules.

The main design focus of the Angular Scheduler component is speed and scalability. The Scheduler can handle hundreds of rows/resources and thousands of events/tasks. The rendering is optimized - it only renders the data for the current viewport. The Scheduler can load additional data during scrolling and save network and CPU resources.

The Scheduler supports advanced features such as infinite scrolling, zoom, full-screen display, row collapse/expand animations, data filtering, undo/redo, PDF and image export, links between events, CSS themes.

You can use the full power of Angular framework and define the content of the Scheduler elements using Angular components. Display your own components in events, row headers, time headers or callouts.

The timeline on the X axis is fully customizable. You can hide non-business hours and days (no-continuous timeline is supported), define custom columns widths, time header rows (grouped by minute, hour, day, week, month, quarter, year).

You can start by generating a quick proof-of-concept Angular application that includes a pre-configured Scheduler component using the Scheduler UI Builder.

Tutorials

Feature showcase (with live demos)

The following tutorials demonstrate individual features in downloadable Angular projects:

Basic tutorials

There tutorials show how to use the Angular Scheduler component with different backends (PHP, Java):

Applications

These projects show how to use the Scheduler in real-world applications:

Angular 12 Quick Start Project

Angular 11 Quick Start Project

Angular 10 Quick Start Project

How to configure the Scheduler using a visual tool

scheduler ui builder angular javascript

The Scheduler UI Builder online application can help you configure the basic properties of the Scheduler component without exploring the documentation. You can immediately see the effect of the configuration change. When you are happy with the configuration, you can download an Angular project with your changes.

How to add the Scheduler to your Angular application

1. Install "daypilot-pro-angular" package

The Scheduler component is included in daypilot-pro-angular package that is hosted at npm.daypilot.org.

npm install https://npm.daypilot.org/daypilot-pro-angular/trial/xxxx.y.zzzz.tar.gz --save

You can get a link to the latest release at npm.daypilot.org.

2. Import DayPilotModule

In your Angular module, import DayPilotModule from daypilot-pro-angular package:

// ...
import {DayPilotModule} from "daypilot-pro-angular";

@NgModule({
  imports:      [
    // ...
    DayPilotModule
  ],
  // ...
})
export class SchedulerModule { }

3. Add the Scheduler to your Angular component

Include <daypilot-scheduler> tag in your component template:

@Component({
  template: `<daypilot-scheduler></daypilot-scheduler>`,
  // ...
})
export class SchedulerComponent implements AfterViewInit {
  // ...
}

How to configure the Angular Scheduler

Use the [config] attribute to specify the configuration object:

<daypilot-scheduler [config]="config"></daypilot-scheduler>

You can use the config object to specify custom properties and event handlers.

Example:

import {Component} from '@angular/core';
import {DayPilot, DayPilotSchedulerComponent} from "daypilot-pro-angular";

@Component({
  selector: 'angular-scheduler-example',
  template: `<daypilot-scheduler [config]="config"></daypilot-scheduler>`
})
export class AppComponent {

  config: DayPilot.SchedulerConfig = {
    timeHeaders: [
      { groupBy: "Month", format: "MMMM yyyy" },
      { groupBy: "Day", format: "d" }
    ],
    scale: "Day"
  }

}

Note: The current change detection implementation requires that the object is serializable using JSON.stringify().

How to load event data

You can use the [events] attribute to specify the object with event data:

<daypilot-scheduler [events]="events"></daypilot-scheduler>

The scheduler expects an array of items with structure described in DayPilot.Event.data documentation.

You can use visibleStart() and visibleEnd() methods of the DayPilot.Scheduler object to get the grid boundaries. It's first available in the ngAfterViewInit() event handler.

Example:

import {Component} from '@angular/core';
import {DayPilotSchedulerComponent} from "daypilot-pro-angular";

@Component({
  selector: 'angular2-scheduler-example',
  template: `<daypilot-scheduler [config]="config" [events]="events"></daypilot-scheduler>`
})
export class AppComponent {

  config: DayPilot.SchedulerConfig = {
    timeHeaders: [
      { groupBy: "Month", format: "MMMM yyyy" },
      { groupBy: "Day", format: "d" }
    ],
    scale: "Day",
    start: "2021-11-01",
    days: 30,
    resources: [
      { name: "Resource 1", id: "R1"}
    ]
  }

  events: [
    { id: 1, start: "2021-11-21", end: "2021-11-24", resource: "R1", text: "Event 1" }
  ]

}

Note: The current change detection implementation requires that the object is serializable using JSON.stringify().

How to handle user actions (click, drag and drop)

You can specify the event handlers using the config object.

Example that specifies onEventMoved event handler:

import {Component} from '@angular/core';
import {DayPilotSchedulerComponent} from "daypilot-pro-angular";

@Component({
  selector: 'angular-scheduler-example',
  template: `<daypilot-scheduler [config]="config" [events]="events"></daypilot-scheduler>`
})
export class AppComponent {

  config: DayPilot.SchedulerConfig = {
    timeHeaders: [
      { groupBy: "Month", format: "MMMM yyyy" },
      { groupBy: "Day", format: "d" }
    ],
    scale: "Day",
    start: "2021-11-01",
    days: 30,
    resources: [
      { name: "Resource 1", id: "R1"}
    ],
    onEventMoved: args => {
      console.log("Event moved");
    }
  }

  events: [
    { id: 1, start: "2016-11-21", end: "2016-11-24", resource: "R1", text: "Event 1" }
  ]

}

How to access the DayPilot.Scheduler object

In order to call the Scheduler API methods you need to get a reference to the DayPilot.Scheduler object. The Angular Scheduler component works with two Scheduler objects:

  • DayPilotSchedulerComponent => Angular Component (<daypilot-scheduler> tag)
  • DayPilot.Scheduler => Underlying plain JavaScript object (DayPilot.Scheduler class)

You can get a reference to DayPilotSchedulerComponent using a hash attribute:

Template (HTML)

<daypilot-scheduler #scheduler1></daypilot-scheduler>

Component (TypeScript)

import {Component, ViewChild} from '@angular/core';
import {DayPilotSchedulerComponent} from "daypilot-pro-angular";

@Component({
  selector: 'angular-scheduler-example',
  template: `<daypilot-scheduler #scheduler1></daypilot-scheduler>`
})
export class AppComponent {

  @ViewChild("scheduler1")
  scheduler!: DayPilotSchedulerComponent;

}

This object exposes the underlying DayPilot.Scheduler object using the control property:

import {Component, ViewChild} from '@angular/core';
import {DayPilotSchedulerComponent} from "daypilot-pro-angular";

@Component({
  selector: 'angular-scheduler-example',
  template: `<daypilot-scheduler #scheduler1></daypilot-scheduler>`
})
export class AppComponent {

  @ViewChild("scheduler1")
  scheduler!: DayPilotSchedulerComponent;

  message() {
    this.scheduler.control.message("Welcome!");
  }

}

Note that the DayPilot.Scheduler object is not accessible before ngAfterViewInit.

How to improve performance of the Scheduler

There are a few things to take into account when tuning the Scheduler performance in Angular. See Angular Performance.

Where to get the "daypilot-pro-angular" NPM package

DayPilot Pro for Angular NPM package is hosted at npm.daypilot.org.

Trial version:

  • https://npm.daypilot.org/daypilot-pro-angular/trial/xxxx.y.zzzz.tar.gz

Full version:

  • https://npm.daypilot.org/daypilot-pro-angular/{api-key}/xxxx.y.zzzz.tar.gz

Licensed customers can get the API key in the customer area.

Which version of DayPilot includes the Angular Scheduler component

The Angular Scheduler component is included in DayPilot Pro for JavaScript.
